HIPPO
shield
HIPPOSHEILD Geo-membranes from Chemco are proven solutions for water resource management as well as a variety of industries and applications- from agricultural irrigation and water conservation to oil and gas containment and mining.
Product Applications
Pond Liners | Cap and Closures | Landfills | Mining Canal Liners | Secondary Containment | Landscaping Slope Protection | Agricultural Irrigation | Water Conversion
Advantages
-
Certified and bureau of India standard under the code of IS 15351:2015
-
Largest width fabricated panels in Geo-membranes industry
-
Extra durable, providing resistance to tears & punctures
-
Engineered coatings provide exceptional hydrostatic resistance and heat seaming resistance
-
Technologically designed for UV resistance
-
Geo-membrane comes with exclusive warranty for specific defects
-
Onsite installation with most advanced machineries
-
Accepted and approved to all government subsidies
Features
- Durable Geo-membrane products
- Fabricated and transported
- Easy to install and durable
- HIPPOSHEILD geo-membrane liners are available in 12 feet wide widths and can be factory fabricated and transported to the work site
- Chemco offers a range of durable Geo-membrane products for lining and directing water flow
- HIPPOSHEILD geo-membrane woven coated fabric liners feature unique benefits that make them the ideal choice
Specifications
| Sr. No | Property | Test Method | Hippo Shield 300 | Hippo Shield 500 | Hippo Shield 750 | Hippo Shield 1000 |
|---|---|---|---|---|---|---|
| 1 | Weight | ASTM D751 | 250 g/m2 | 420 g/m2 | 630 g/m2 | 750 g/m2 |
| 2 | Thickness | ASTM D751 | 0.3 mm | 0.5 mm | 0.76 mm | 1 mm |
| 3 | Strip Tensile Strength (MD) | ASTM D7003 | 1200 N | 1200 N | 1200 N | 1200 N |
| 4 | Strip Tensile Strength (CD) | ASTM D7003 | 1200 N | 1210 N | 1210 N | 1210 N |
| 5 | Tongue Tear (MD) | ASTM D5884 | 190 N | 250 N | 289 N | 380 N |
| 6 | Tongue Tear (CD) | ASTM D5884 | 190 N | 250 N | 289 N | 380 N |
| 7 | Hydrostatic Resistance | ASTM D751 | 2289 kPa | 3771 kPa | 5026 kPa | 6560 kPa |
| 8 | Seam strength before UV exposure(n/mm),Min | Annex E IS: 15351 | 31.6 | 42 | 60 | 80 |
| 9 | Tear Resistance N, Min | A1 of IS:7016 part 3 | 270 | 380 | 495 | 640 |
| 10 | Carbon Black Content | ASTM D4218 | 2% , +- 5 | 2% , +- 5 | 2% , +- 5 | 2% , +- 5 |
| 11 | Standard Roll Width Meter | – | 3.65 m | 3.65 m | 3.65 m | 3.65 m |
| 12 | Standard Roll Length | – | Customise | Customise | Customise | Customise |
| 13 | Seam strength after UV exposure(n/mm),Min | Annex B&E IS :15351 | 90% of actual original value | 90% of actual original value | 90% of actual original value | 90% of actual original value |

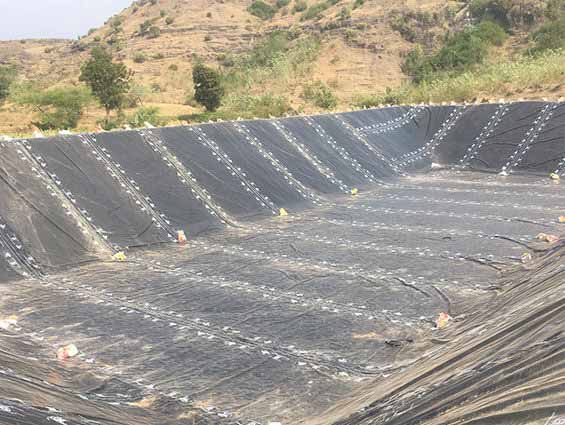

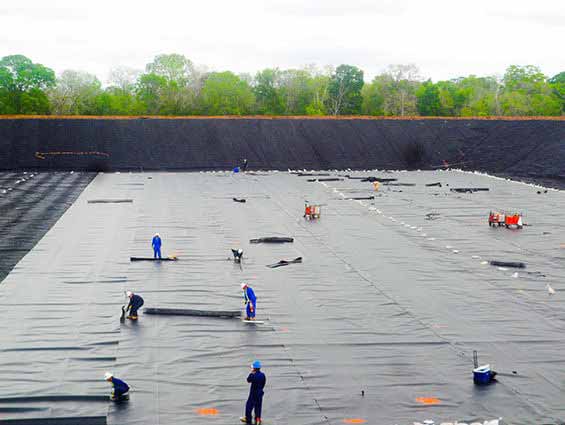

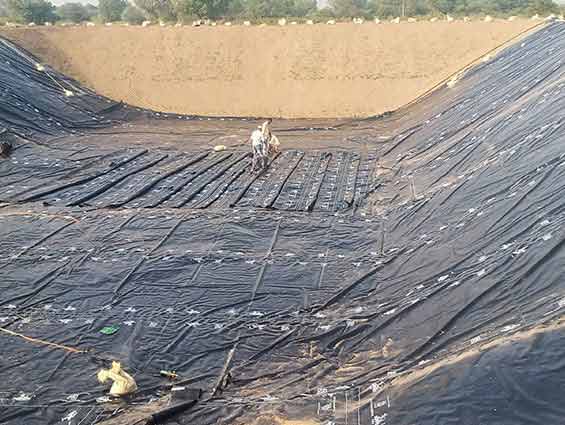

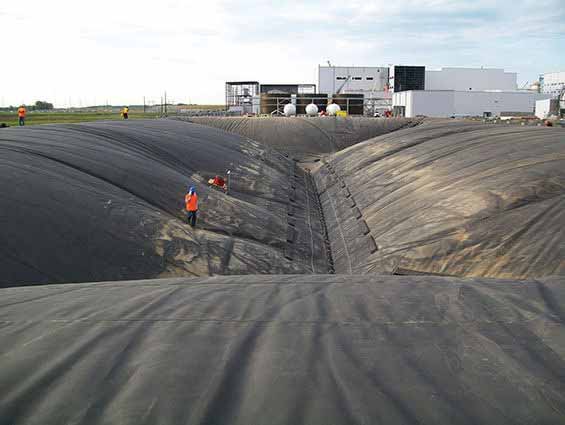

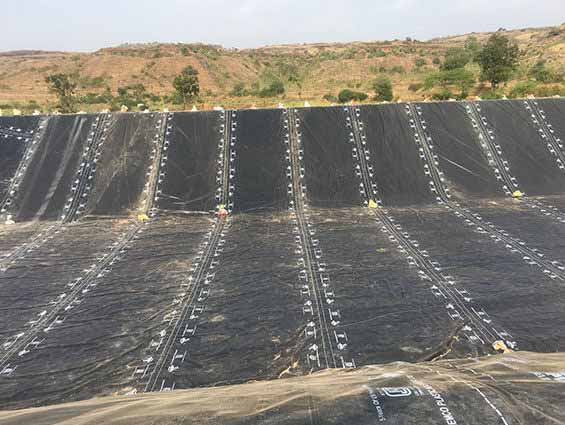

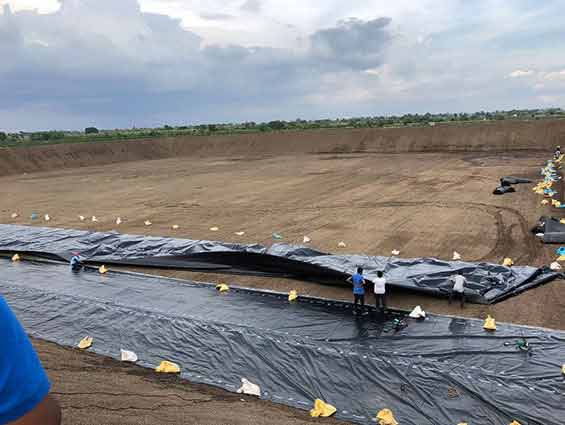

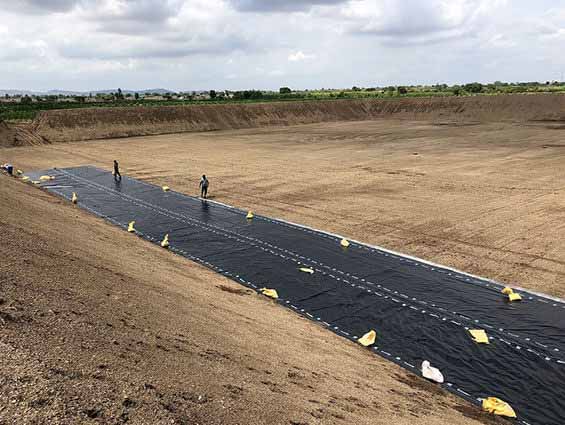

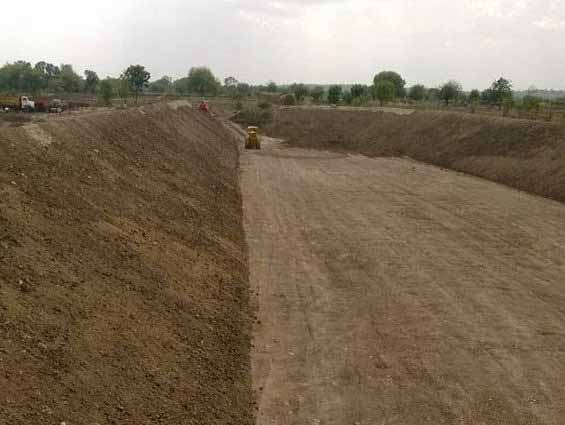

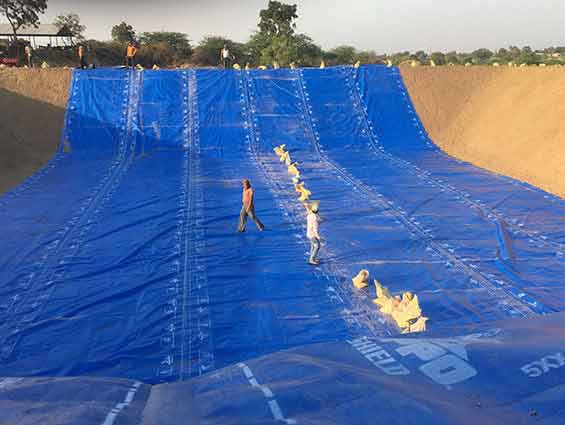

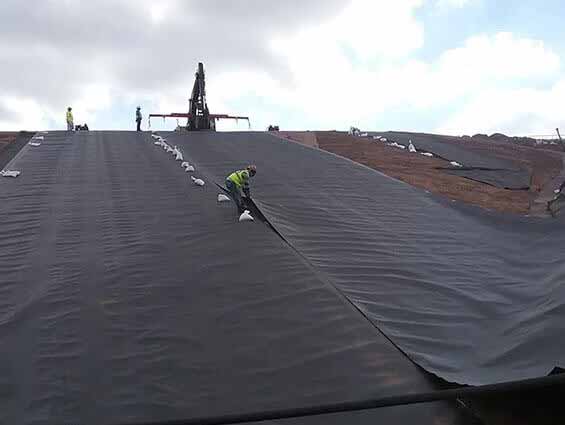

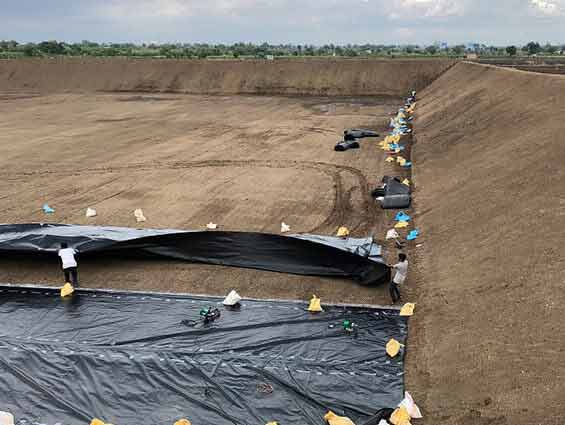

Gallery
